6035mm,52MHZ,AAV52M000000FLH32H,STD晶體諧振器,美國石英晶體,6032兩腳貼片晶振,無源SMD晶振,陶瓷晶振,無源晶振,52MHZ貼片晶振,SMD crystal,水晶振動子,尺寸6.0x3.5mm,頻率52MHz,負載32pF,工作溫度-20~+70℃,高性能晶振,高精度晶振,低耗能晶振,低老化晶振,耐高溫晶振,微處理器晶振,儀器設備晶振,無線網絡晶振,視聽設備晶振,無線局域網晶振.
6035mm,52MHZ,AAV52M000000FLH32H,STD晶體諧振器特點:
采用薄型封裝的諧振器單元
超高的可靠性能，以及穩定性能
符合RoHS標準且無鉛

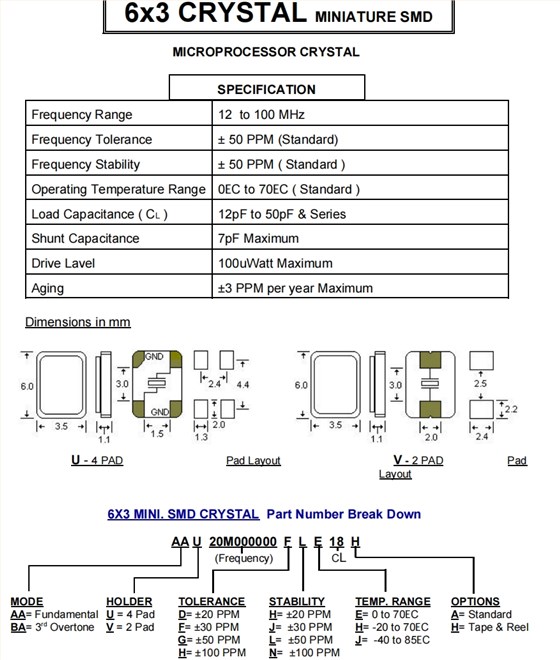

6035mm,52MHZ,AAV52M000000FLH32H,STD晶體諧振器 參數表
| Frequency Range | 52 MHz | |||||||||||
| Frequency Tolerance | ± 50 PPM (Standard) | |||||||||||
| Frequency Stability | ± 50 PPM ( Standard ) | |||||||||||
| Operating Temperature Range | 0EC to 70EC ( Standard ) | |||||||||||
| Load Capacitance ( CL) | 12pF to 50pF & Series | |||||||||||
| Shunt Capacitance | 7pF Maximum | |||||||||||
| Drive Lavel | 100uWatt Maximum | |||||||||||
| Aging | ±3 PPM per year Maximum | |||||||||||

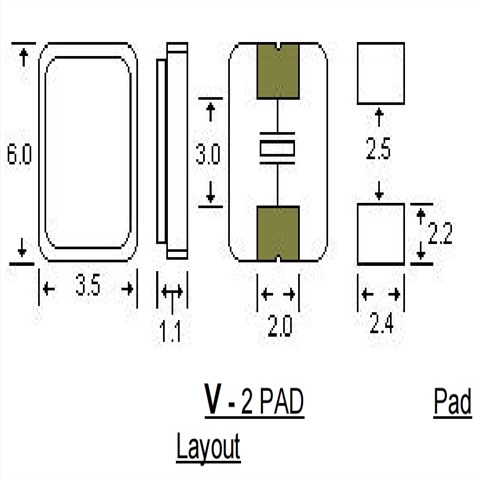

6035mm,52MHZ,AAV52M000000FLH32H,STD晶體諧振器 尺寸圖
