LFXTAL016178,IQD晶振廠家,無源晶體諧振器,高溫晶振
原廠編碼
LFXTAL016178
頻率
32.768KHz
廠家
IQD晶振
型號
85SMX
頻率偏差
±20ppm
負載電容
6pF
工作溫度
-40°C至85°C

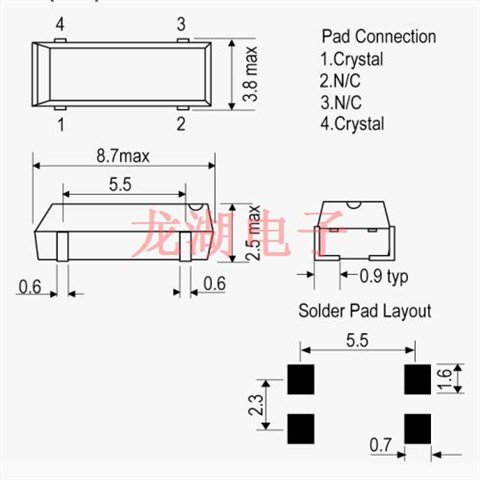

尺寸
8.7*3.8mm
LFXTAL016178,IQD晶振廠家,無源晶體諧振器,高溫晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率偏差 | 負載電容 |
| LFXTAL026908REEL | IQD 晶振 | HC49/4HSMX | 14.7456 MHz | ±20ppm | 16pF |
| LFXTAL036034REEL | IQD 晶振 | HC49/4HSMX | 16 MHz | ±30ppm | 16pF |
| LFXTAL026902REEL | IQD 晶振 | HC49/4HSMX | 8.192 MHz | ±20ppm | 16pF |
| LFXTAL003334REEL | IQD 晶振 | HC49/4HSMX | 7.3728 MHz | ±30ppm | 16pF |
| LFXTAL026911REEL | IQD 晶振 | HC49/4HSMX | 18.432 MHz | ±20ppm | 16pF |
| LFXTAL054555REEL | IQD 晶振 | HC49/4HSMX | 25 MHz | ±20ppm | 20pF |
| LFXTAL009706 | IQD 晶振 | CFPX-217 | 32.768 kHz | ±20ppm | 9pF |
| LFXTAL054236 | IQD 晶振 | CFPX-217 | 32.768 kHz | ±20ppm | 6pF |
| LFXTAL082887RL3K | IQD 晶振 | IQXC-42 | 16 MHz | ±10ppm | 10pF |
| LFXTAL085851 | IQD 晶振 | IQXC-42 | 32 MHz | ±10ppm | 10pF |
| LFXTAL069493REEL | IQD 晶振 | IQXC-42 | 24 MHz | ±15ppm | 10pF |
| LFXTAL082129CUTT | IQD 晶振 | IQXC-42 | 32 MHz | ±10ppm | 8pF |
| LFXTAL073170REEL | IQD 晶振 | IQXC-42 | 32 MHz | ±10ppm | 10pF |
| LFXTAL085841 | IQD 晶振 | IQXC-42 | 20 MHz | ±15ppm | 10pF |
| LFXTAL085844 | IQD 晶振 | IQXC-42 | 24 MHz | ±20ppm | 10pF |
| LFXTAL085849 | IQD 晶振 | IQXC-42 | 27.12 MHz | ±10ppm | 10pF |
| LFXTAL069405REEL | IQD 晶振 | CFPX-218 | 27 MHz | ±20ppm | 18pF |
| LFXTAL069392REEL | IQD 晶振 | CFPX-218 | 16 MHz | ±20ppm | 10pF |
| LFXTAL059611RL3K | IQD 晶振 | CFPX-180 | 13.56 MHz | ±20ppm | 18pF |
| LFXTAL054208RL3K | IQD 晶振 | CFPX-180 | 12 MHz | ±10ppm | 10pF |
| LFXTAL035265REEL | IQD 晶振 | CFPX-180 | 20 MHz | ±50ppm | 16pF |
| LFXTAL068297REEL | IQD 晶振 | CFPX-218 | 16 MHz | ±10ppm | 8pF |
| LFXTAL070868REEL | IQD 晶振 | CFPX-180 | 12 MHz | ±10ppm | 18pF |
| LFXTAL055951REEL | IQD 晶振 | CFPX-180 | 16 MHz | ±30ppm | 18pF |
| LFXTAL035266REEL | IQD 晶振 | CFPX-180 | 24 MHz | ±50ppm | 16pF |
