首頁 NDK晶振

6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振

6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振

產品簡介

6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振，尺寸為2.5*2.0mm,頻率156.25MHZ，輸出邏輯LVPECL，差分輸出信號LV-PECL，LVPECL差分振蕩器，差分貼片晶振，低電壓差分振蕩器，低功耗差分晶振，低抖動差分晶振，低耗能差分晶振，低相位差分振蕩器，低相噪差分晶振，高頻差分晶振，156.25MHZ差分振蕩器，儀器設備差分晶振，6G光模塊差分晶振，無線網絡差分振蕩器，網絡專用差分晶振，6G路由器專用差分晶振，小型設備專用差分晶振，有源振蕩器產品具有低電壓低抖動低功耗的特點，非常適合用于6G兼容設備，光通信、光收發器，WDM設備，可視化智能家居，娛樂設備，數字視頻，儀器儀表以及光模塊等領域。6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振.

產品詳情

Abracon-2

LH-1

6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振，尺寸為2.5*2.0mm,頻率156.25MHZ，輸出邏輯LVPECL，差分輸出信號LV-PECL，LVPECL差分振蕩器，差分貼片晶振，低電壓差分振蕩器，低功耗差分晶振，低抖動差分晶振，低耗能差分晶振，低相位差分振蕩器，低相噪差分晶振，高頻差分晶振，156.25MHZ差分振蕩器，儀器設備差分晶振，6G光模塊差分晶振，無線網絡差分振蕩器，網絡專用差分晶振，6G路由器專用差分晶振，小型設備專用差分晶振，有源振蕩器產品具有低電壓低抖動低功耗的特點，非常適合用于6G兼容設備，光通信、光收發器，WDM設備，可視化智能家居，娛樂設備，數字視頻，儀器儀表以及光模塊等領域。6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振.

LH-2

6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振參數表

Item Ratings Notes
min max Units
1 Supply Voltage -0.3 +4.0 V
2 Input Voltage -0.3 VCC+0.3 V
3 Storage Temperature Range -55 +125 。C

Parameters SYM Electrical Spec. Notes
min typ max Units
1 Nominal Frequency fnom
156.25
MHz
2 Supply Voltage VCC 2.375 2.5 2.625 V
2.97 3.3 3.63 V
3 Current Consumption (Operating) ICC 60 mA at 25。C
4 Current Consumption (Stand-by) IST 30 μA at 25。C
5 Output Level - LVPECL
6 Load RL 50 Ω Connect to VCC- 2.0 V
7 Operating Temperature Range Topr -40 +85 。C
8 Overall Frequency Tolerance Δf/fnom -50 +50 ppm *1
9 Output Voltage VOL VCC- 1.5 V
VOH VCC- 1.1 V
10 Rise Time(tr), Fall Time(tf) tr/tf 0.5 ns 20 % to 80 %
waveform
11 Symmetry SYM 45 55 % at 50 % Waveform
12 Start-up Time tsu 10 ms
13 Phase Jitter tpj 60 fs *2
14 Output Wave Form - Square wave
15 Stand-by Function #1 PAD input #4, 5 PAD output
H level (0.7 VCCto VCC) or open Operating
L level (0.3 VCCmax) High impedance
LH-3Abracon-1

6G路由器晶振,NP2520SAB-156.25MHZ-NSC5326A,NDK有源LVPECL晶振 尺寸圖NP2520SAB

產品特性：

LVPECL差分輸出SPXO有源晶振

緊湊:2.5 x 2.0 x 0.8毫米

電源電壓:+2.5V或者+3.3V

低相位抖動:典型。156.25MHz時60fs

無鉛

NP2520SAB 1

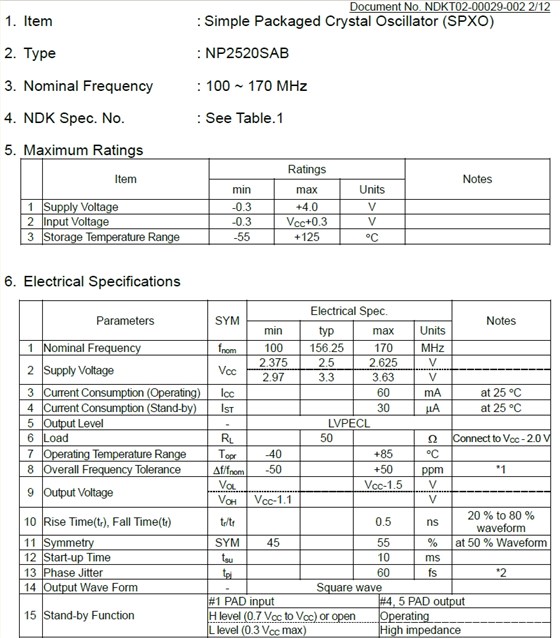

NP2520SAB 2

更多相關日本NDK晶振型號

Model Nominal frequency[MHz] Specification number Manufacturer Package size(LxW)[mm] Output specification Operating temperature rang[℃] Storage temperature range[℃] Supply voltage[V]
NP2520SB 156.25MHZ NSC5301A NDK晶振 2.5x2.0 LVDS -40~+85 -55~+125 +2.5±0.125
NP2520SB 156.25MHZ NSC5301B NDK晶振 2.5x2.0 LVDS -40~+85 -55~+125 +3.3±0.33
NP2520SAB 156.25MHZ NSC5326A NDK晶振 2.5x2.0 LVPECL -40~+85 -55~+125 +2.5±0.125
NP2520SAB 156.25MHZ NSC5326B NDK晶振 2.5x2.0 LVPECL -40~+85 -55~+125 +3.3±0.33
NP2520SBB 156.25MHZ NSC5327A NDK晶振 2.5x2.0 LVDS -40~+85 -55~+125 +2.5±0.125
NP2520SBB 156.25MHZ NSC5327B NDK晶振 2.5x2.0 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SA 100MHZ NSC5080A NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +2.5±0.125
NP3225SA 122.88MHZ NSC5080A NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +2.5±0.125
NP3225SA 125MHZ NSC5080A NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +2.5±0.125
NP3225SA 156.25MHZ NSC5080A NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +2.5±0.125
NP3225SA 175MHZ NSC5080A NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +2.5±0.125
NP3225SA 100MHZ NSC5341B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SA 122.88MHZ NSC5341B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SA 125MHZ NSC5341B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SA 156.25MHZ NSC5341B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SA 175MHZ NSC5341B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SA 100MHZ NSC5189A NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +2.5±0.125
NP3225SA 122.88MHZ NSC5189A NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +2.5±0.125
NP3225SA 125MHZ NSC5189A NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +2.5±0.125
NP3225SA 156.25MHZ NSC5189A NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +2.5±0.125
NP3225SA 175MHZ NSC5189A NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +2.5±0.125
NP3225SA 100MHZ NSC5342B NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +3.3±0.33
NP3225SA 122.88MHZ NSC5342B NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +3.3±0.33
NP3225SA 125MHZ NSC5342B NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +3.3±0.33
NP3225SA 156.25MHZ NSC5342B NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +3.3±0.33
NP3225SA 175MHZ NSC5342B NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +3.3±0.33
NP3225SA 200MHZ NSC5235A NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +2.5±0.125
NP3225SA 212.5MHZ NSC5235A NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +2.5±0.125
NP3225SA 200MHZ NSC5235B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SA 212.5MHZ NSC5235B NDK晶振 3.2x2.5 LVPECL -40~+85 -55~+125 +3.3±0.33
NP3225SA 200MHZ NSC5237A NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +2.5±0.125
NP3225SA 212.5MHZ NSC5237A NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +2.5±0.125
NP3225SA 200MHZ NSC5237B NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +3.3±0.33
NP3225SA 212.5MHZ NSC5237B NDK晶振 3.2x2.5 LVPECL -40~+105 -55~+125 +3.3±0.33
NP3225SB 50MHZ NSC5343A NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +2.5±0.125
NP3225SB 100MHZ NSC5343A NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +2.5±0.125
NP3225SB 125MHZ NSC5343A NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +2.5±0.125
NP3225SB 135MHZ NSC5343A NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +2.5±0.125
NP3225SB 148MHZ NSC5343A NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +2.5±0.125
NP3225SB 156.25MHZ NSC5343A NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +2.5±0.125
NP3225SB 200MHZ NSC5236A NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +2.5±0.125
NP3225SB 50MHZ NSC5343B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SB 100MHZ NSC5343B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SB 125MHZ NSC5343B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SB 135MHZ NSC5343B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SB 148MHZ NSC5343B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SB 156.25MHZ NSC5343B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SB 200MHZ NSC5236B NDK晶振 3.2x2.5 LVDS -40~+85 -55~+125 +3.3±0.33
NP3225SB 50MHZ NSC5344A NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +2.5±0.125
NP3225SB 100MHZ NSC5344A NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +2.5±0.125
NP3225SB 125MHZ NSC5344A NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +2.5±0.125
NP3225SB 135MHZ NSC5344A NDK晶振 3.2x2.5 LVDS -40~+105 -55~+125 +2.5±0.125
