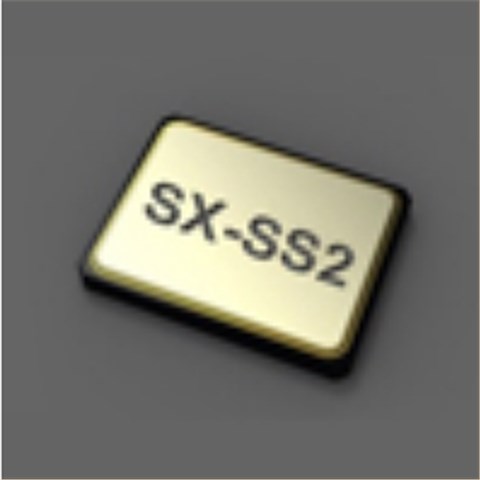

SX-SS2-10-20HZ-32.000MHz-9pF,6G無線通信晶振,新松無源晶振，尺寸為5.0*3.2mm，頻率為32MHZ，SHINSUNG Crystal，SHINSUNG貼片晶振，無源貼片晶振，水晶振動子，SMD晶振，無源晶體，小體積晶振，兩腳貼片晶振，無源諧振器，微處理器時鐘專用晶振，蜂窩無源晶振，以太網晶振，無線通信晶振，數字電視晶振，視頻專用晶振，蜂窩電話晶振，高性能晶振，產品具有高性能的特點.
SMD crystal產品很適合用于微處理器時鐘，蜂窩，以太網，無線通信，數字電視，視頻，蜂窩電話，無線局域網等領域。SX-SS2-10-20HZ-32.000MHz-9pF,6G無線通信晶振,新松無源晶振.

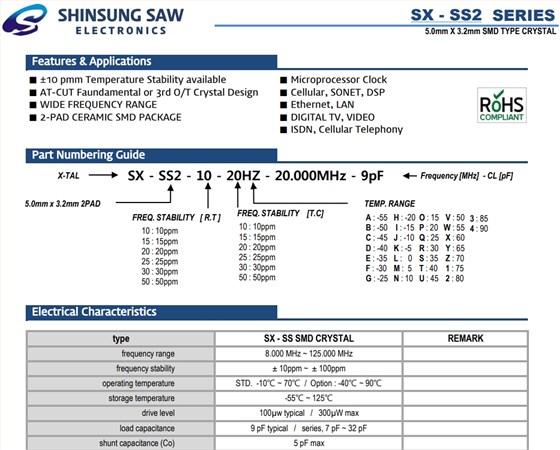

SX-SS2-10-20HZ-32.000MHz-9pF,6G無線通信晶振,新松無源晶振 參數表
| type | SX - SS SMD CRYSTAL | REMARK | |||||||||||||||||
| frequency range | 32.000 MHz | ||||||||||||||||||
| frequency stability | ± 10ppm ~± 100ppm | ||||||||||||||||||
| operating temperature | STD.-10℃~ 70℃/Option : -40℃~ 90℃ | ||||||||||||||||||
| storage temperature | -55℃~ 125℃ | ||||||||||||||||||
| drive level | 100µw typical/300µW max | ||||||||||||||||||
| load capacitance | 9 pF typical/series, 7 pF ~ 32 pF | ||||||||||||||||||
| shunt capacitance (Co) | 5 pF max | ||||||||||||||||||
|
equivalent series resistance |
8.00 ~ 11.99 MHz | 100 Ωmax | fundamental | ||||||||||||||||
| 12.00 ~ 19.99 MHz | 80 Ωmax | fundamental | |||||||||||||||||
| 20.00 ~ 29.99 MHz | 70 Ωmax | fundamental | |||||||||||||||||
| 30.00 ~ 54.00 MHz | 50 Ωmax | fundamental | |||||||||||||||||
| 40.0 ~ 125.0 MHz | 80 Ωmax | third overtone | |||||||||||||||||
| aging | ±5.0ppm max at +25℃±3℃for first year | ||||||||||||||||||
| insulation resistance | 500MΩmin @ 100V | ||||||||||||||||||

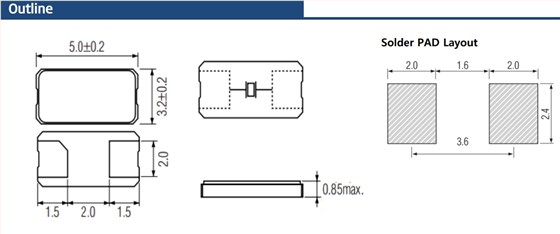

SX-SS2-10-20HZ-32.000MHz-9pF,6G無線通信晶振,新松無源晶振 尺寸圖
產品特性：
±10pmm溫度穩定性可用
AT-CUT仿制品或第三代O/T水晶設計
寬頻率范圍
陶瓷SMD封裝
高精度
更多相關韓國新松晶振型號，請聯系我們！
