歐洲石英晶振\16.3840MHZ-EQXOPL-1000UITA\XO振蕩器\6G模塊晶振，尺寸20.4*12.8mm,頻率16.384MHZ，OSC晶振，歐美進口晶振，進口有源晶振，XO時鐘振蕩器，石英晶體振蕩器，高性能晶振，低耗能晶振，低抖動晶振，航空電子晶振，6G應用專用晶振，6G藍牙模塊晶振，6G路由器晶振，6G室外基站晶振，儀器設備晶振，測試產品專用晶振，EQXOPL-1000可編程振蕩器提供定制頻率和規格振蕩器的配合非?？旖桓稌r間。抖動，一般性能和規格為可與離散頻率振蕩器相媲美。
有源晶振產品超級適合用于航空電子，6G應用，6G藍牙模塊，6G路由器，6G室外基站，儀器設備，測試產品等領域。歐洲石英晶振\16.3840MHZ-EQXOPL-1000UITA\XO振蕩器\6G模塊晶振.
歐洲石英晶振\16.3840MHZ-EQXOPL-1000UITA\XO振蕩器\6G模塊晶振 參數表
| Frequency Range: 16.384MHZ |
| Frequency stability: from ±25ppm to ±100ppm |
| Operating Temperature Range: |
|
0° ~ +70°C Part Code 'C' -20° ~ +70°C Part Code 'D' -40° ~ +85°C Part Code 'I' |
| Storage Temperature Range: -55° ~ +125°C |
| Ageing: 鹵5ppm per year max. |
| Packaging: Bulk packed or Tubed |
| Output Levels: CMOS or TTL |
| Maximum Output Loads: Below 40MHz: 30pF |
| Above 40MHz: 15pF |
| (See note opposite) |
| Duty Cycle: Below 40MHz: 45/55% min. |
| Above 40MHz: 40/60% min. |
| Rise/Fall Times: 4ns max. |
| Supply Current: 25mA (unloaded) |
| Standby Current: 10µA typical, 50µA max. |
| Start-up Time: 10ms max. |
| Power Down and Disable Delay Time |
| Synchronous: T/2ns typical, T +10ns typical |
| Asynchronous: 10ns typical, 15ns maximum |
| (T - frequency period) |
| Output Enable Time: 100ns maximum |
| RMS Jitter: |
| 1MHz ~ 33MHz: 50ps maximum |
| 33MHz ~ 133MHz: 40ps maximum |

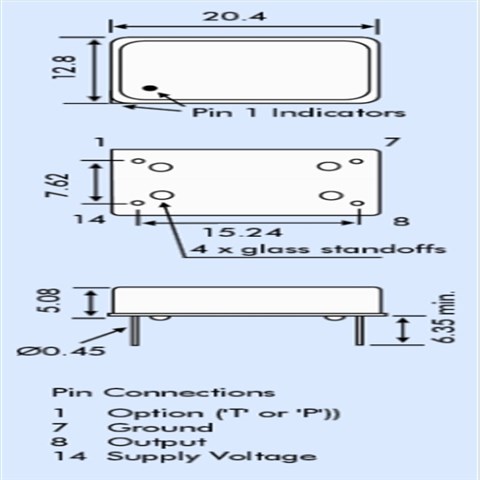

歐洲石英晶振\16.3840MHZ-EQXOPL-1000UITA\XO振蕩器\6G模塊晶振 尺寸圖
產品特性：
非常快的交貨
工業標準14引腳DIL封裝
供電電壓2.7V, 3.3V或5.0伏
啟用/禁用或關機選項
更多相關歐洲石英EUROQUARTZ晶振型號，請咨詢我們！
