頻率：54MHZ
尺寸：6.0x3.5mm
FMI石英振動子,FMXMC6S122FDB-54.000000M-CM,6035mm,FMXMC6S系列,歐美石英晶振,無源諧振器,四腳貼片晶體,54MHZ歐美晶振,6035mm石英晶體諧振器,水晶振動子,無源貼片晶振,SMD晶振,尺寸6.0x3.5mm,頻率54MHZ,負載22pF,工作溫度-20~+70 °C,低損耗晶振,輕薄型晶振,高品質晶振,電子設備晶振,便攜式設備晶振,家庭影院晶振,音頻專用晶振,無線應用晶振.
FMI石英振動子,FMXMC6S122FDB-54.000000M-CM,6035mm,FMXMC6S系列特點：
表面貼裝陶瓷組件。
微型4焊盤/超薄SMD crystal
高可靠性
緊密穩定性

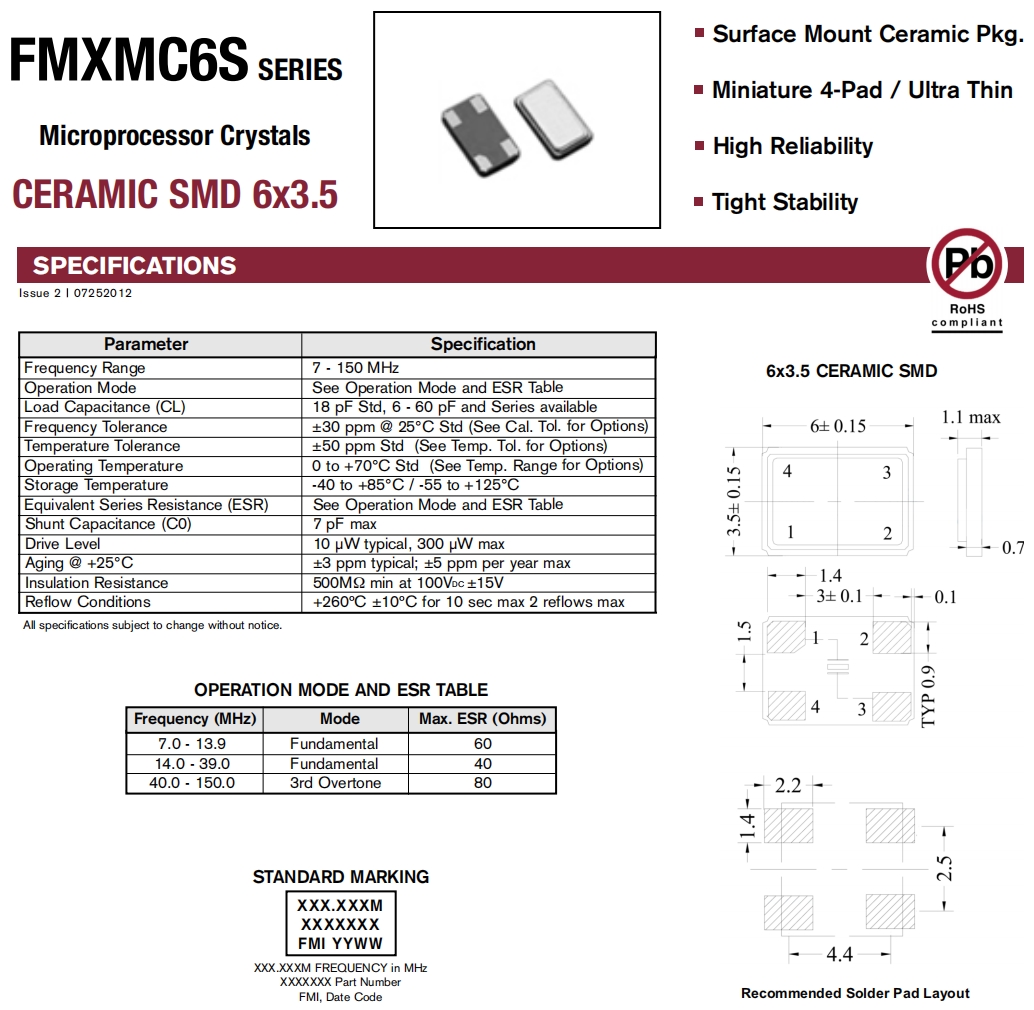

FMI石英振動子,FMXMC6S122FDB-54.000000M-CM,6035mm,FMXMC6S系列 參數表
| Parameter | Specification | ||||||||||||||||||
| Frequency Range | 54 MHz | ||||||||||||||||||
| Operation Mode | See Operation Mode and ESR Table | ||||||||||||||||||
| Load Capacitance (CL) | 18 pF Std, 6 - 60 pF and Series available | ||||||||||||||||||
| Frequency Tolerance | ±30 ppm @ 25°C Std (See Cal. Tol. for Options) | ||||||||||||||||||
| Temperature Tolerance | ±50 ppm Std (See Temp. Tol. for Options) | ||||||||||||||||||
| Operating Temperature | 0 to +70°C Std (See Temp. Range for Options) | ||||||||||||||||||
| Storage Temperature | -40 to +85°C / -55 to +125°C | ||||||||||||||||||
| Equivalent Series Resistance (ESR) | See Operation Mode and ESR Table | ||||||||||||||||||
| Shunt Capacitance (C0) | 7 pF max | ||||||||||||||||||
| Drive Level | 10 µWtypical, 300 µW max | ||||||||||||||||||
| Aging @ +25°C | ±3 ppm typical; ±5 ppm per year max | ||||||||||||||||||
| Insulation Resistance | 500MΩ min at 100VDC ±15V | ||||||||||||||||||
| Reflow Conditions | +260ºC ±10ºC for 10 sec max 2 reflows max | ||||||||||||||||||

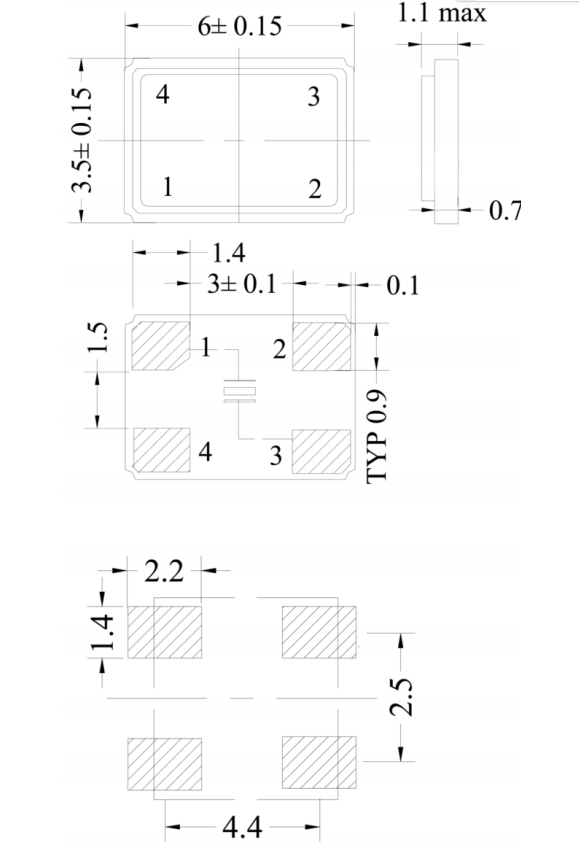

FMI石英振動子,FMXMC6S122FDB-54.000000M-CM,6035mm,FMXMC6S系列 尺寸圖
