CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1

頻率：16MHZ

尺寸：5.0x3.2mm

CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1，尺寸5.0x3.2mm，頻率16MHZ，日本京瓷晶體，日本進口晶振，進口無源晶振，陶瓷諧振器，無源晶振，SMD晶振，無源陶瓷晶振，陶瓷晶振，5032mm貼片晶振，SMD無源晶體，兩腳貼片晶體，低成本晶振，低功耗晶振，低耗能晶振，低老化晶振，高性能晶振，高品質晶振，數字電子專用晶振，數字音頻晶振，汽車音響專用晶振，消費產品晶振，智能音響晶振，藍牙應用晶振，具有良好的可靠性能。

SMD crystal產品比較常用于數字電子，消費產品，汽車，音頻及配件，藍牙應用，智能音響等應用場景。CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1.

訂購熱線：0755-29952551
QQ咨詢 財富通

Abracon-2

LH-1

CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1，尺寸5.0x3.2mm，頻率16MHZ，日本京瓷晶體，日本進口晶振，進口無源晶振，陶瓷諧振器，無源晶振，SMD晶振，無源陶瓷晶振，陶瓷晶振，5032mm貼片晶振，SMD無源晶體，兩腳貼片晶體，低成本晶振，低功耗晶振，低耗能晶振，低老化晶振，高性能晶振，高品質晶振，數字電子專用晶振，數字音頻晶振，汽車音響專用晶振，消費產品晶振，智能音響晶振，藍牙應用晶振，具有良好的可靠性能。

SMD crystal產品比較常用于數字電子，消費產品，汽車，音頻及配件，藍牙應用，智能音響等應用場景。CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1.LH-2

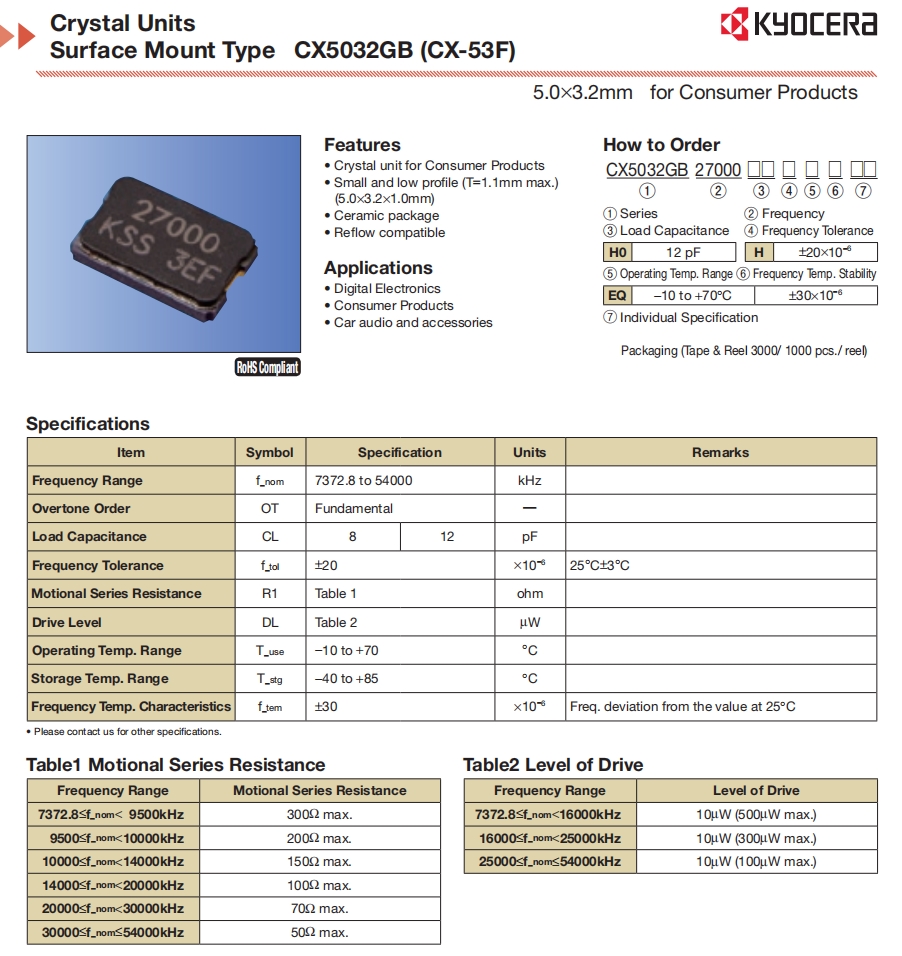

CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1      參數表

Item Symbol Specification Units Remarks
Frequency Range f_nom   16 MHZ
Overtone Order OT  Fundamental ―
Load Capacitance CL 8 12 pF
Frequency Tolerance f_tol ±20 × 10-6 25°C±3°C
Motional Series Resistance R1  Table 1 ohm
Drive Level DL  Table 2 W
Operating Temp. Range T_use  -10 to +70 °C
Storage Temp. Range T_stg  -40 to +85 °C
Frequency Temp. Characteristics f_tem ±30 × 10-6 Freq. deviation from the value at 25°C
LH-3

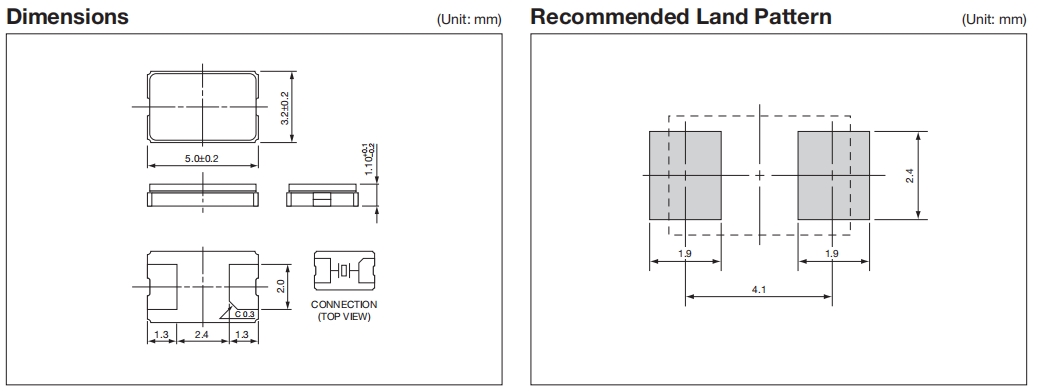

CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1      尺寸圖

CX5032GB

CX5032GB陶瓷晶體,Kyocera數字音頻晶振,CX5032GB16000H0HPQZ1

產品特點:

小而低輪廓（T=最大1.1mm）

（5.0×3.2×1.0mm）

陶瓷面晶振回流兼容

CX5032GB 1CX5032GB

原廠編碼 廠家 型號 頻率    工作溫度
CX3225GB54000P0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 54MHz -40°C ~ 85°C
CX3225GB38400D0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 38.4MHz -40°C ~ 85°C
CX3225GB18432P0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 18.432MHz -40°C ~ 85°C
CX3225GB19200D0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 19.2MHz -40°C ~ 85°C
CX3225GB18432D0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 18.432MHz -40°C ~ 85°C
CX3225GB27000D0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 27MHz -40°C ~ 85°C
CX3225GB48000P0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 48MHz -40°C ~ 85°C
CX3225GB32000P0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 32MHz -40°C ~ 85°C
CX3225GB30000D0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 30MHz -40°C ~ 85°C
CX3225GB33333D0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 33.333MHz -40°C ~ 85°C
CX3225CA09843D0HSSTT AVX Corp/Kyocera Corp CX3225CA, Kyocera 9.843MHz -40°C ~ 125°C
CX3225CA28636D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera 28.63636MHz -40°C ~ 125°C
CX3225CA27000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera 27MHz -40°C ~ 125°C
CX3225CA30000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera 30MHz -40°C ~ 125°C
CX3225GA20000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera 20MHz -40°C ~ 150°C
CX3225GA26000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera 26MHz -40°C ~ 150°C
CX3225GA30000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera 30MHz -40°C ~ 150°C
CX3225GA27000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera 27MHz -40°C ~ 150°C
CX3225GA13560D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera 13.56MHz -40°C ~ 150°C
CX3225GA32000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera 32MHz -40°C ~ 150°C
CX3225GA09843D0PTVTT AVX Corp/Kyocera Corp CX3225GA, Kyocera 9.843MHz -40°C ~ 150°C
CX3225SB12000D0FLJCC AVX Corp/Kyocera Corp CX3225SB, Kyocera 12MHz -30°C ~ 85°C
CX2016DB16000D0WZRC1 AVX Corp/Kyocera Corp CX2016DB, Kyocera 16MHz -25°C ~ 75°C
CX5032GB16000H0HPQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera 16MHz -40°C ~ 85°C
CX3225SB48000D0FPLCC AVX Corp/Kyocera Corp CX3225SB, Kyocera 48MHz -40°C ~ 85°C
CX5032GB08000H0HPQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera 8MHz -40°C ~ 85°C
CX2016DB48000C0WLLA1 AVX Corp/Kyocera Corp CX2016DB, Kyocera 48MHz -30°C ~ 85°C
CX3225SB38400D0FPLCC AVX Corp/Kyocera Corp CX3225SB, Kyocera 38.4MHz -40°C ~ 85°C
CX2520DB38400D0FZGC1 AVX Corp/Kyocera Corp CX2520DB, Kyocera 38.4MHz -25°C ~ 85°C
CX3225GB25000P0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 25MHz -40°C ~ 85°C
CX5032GB10000H0HPQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera 10MHz -40°C ~ 85°C
ST3215SB32768H5HSZA1 AVX Corp/Kyocera Corp ST3215SB, Kyocera 32.768kHz -40°C ~ 125°C
CX3225CA24000D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera 24MHz -40°C ~ 125°C
CX2520DB32000D0FLJCC AVX Corp/Kyocera Corp CX2520DB, Kyocera 32MHz -30°C ~ 85°C
CX5032GB14745H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera 14.7456MHz -10°C ~ 70°C
CX5032GB24576H0PESZZ AVX Corp/Kyocera Corp CX5032GB, Kyocera 24.576MHz -10°C ~ 70°C
CX3225SB48000D0WPSC2 AVX Corp/Kyocera Corp CX3225SB, Kyocera 48MHz -40°C ~ 85°C
CX2520SB13560D0GEJCC AVX Corp/京瓷晶振 CX2520SB, Kyocera 13.56MHz -10°C ~ 70°C
CX2520SB40000H0WZK06 AVX Corp/Kyocera Corp CX2520SB, Kyocera 40MHz 0°C ~ 85°C
CX2520SB40000H0DZF08 AVX Corp/Kyocera Corp CX2520SB, Kyocera 40MHz -10°C ~ 85°C
CX3225GB14318P0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 14.31818MHz -40°C ~ 85°C
CX3225GB10000D0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 10MHz -40°C ~ 85°C
CX3225GB20000P0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 20MHz -40°C ~ 85°C
CX3225GB10000P0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 10MHz -40°C ~ 85°C
CX3225GB48000D0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 48MHz -40°C ~ 85°C
CX3225GB13560D0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 13.56MHz -40°C ~ 85°C
CX3225GB30000P0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 30MHz -40°C ~ 85°C
CX2520DB48000D0GEJCC AVX Corp/Kyocera Corp CX2520DB, Kyocera 48MHz -10°C ~ 70°C
CX2520DB24576D0GEJCC AVX Corp/Kyocera Corp CX2520DB, Kyocera 24.576MHz -10°C ~ 70°C
CX3225CA13560D0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera 13.56MHz -40°C ~ 125°C
CX3225GB16000D0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 16MHz -40°C ~ 85°C
ST3215SB32768E0HPWBB AVX Corp/Kyocera Corp ST3215SB, Kyocera 32.768kHz -40°C ~ 85°C
ST2012SB32768E0HPWBB AVX Corp/Kyocera Corp ST2012SB, Kyocera 32.768kHz -40°C ~ 85°C
CX2016DB16000D0GPSC1 AVX Corp/Kyocera Corp CX2016DB, Kyocera 16MHz -40°C ~ 85°C
CX2520DB25000H0FLJC1 AVX Corp/Kyocera Corp CX2520DB, Kyocera 25MHz -30°C ~ 85°C
CX3225SB13560D0FLJCC AVX Corp/Kyocera Corp CX3225SB, Kyocera 13.56MHz -30°C ~ 85°C
CX3225SB20000H0FLJCC AVX Corp/Kyocera Corp CX3225SB, Kyocera 20MHz -30°C ~ 85°C
CX3225SB32000H0FLJCC AVX Corp/Kyocera Corp CX3225SB, Kyocera 32MHz -30°C ~ 85°C
CX3225SB40000H0FLJCC AVX Corp/Kyocera Corp CX3225SB, Kyocera 40MHz -30°C ~ 85°C
CX3225GB32000D0HEQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 32MHz -10°C ~ 70°C
CX3225GB13000P0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 13MHz -40°C ~ 85°C
CX3225GB27120P0HPQCC AVX Corp/Kyocera Corp CX3225GB, Kyocera 27.12MHz -40°C ~ 85°C
CX3225SB12000D0FPNCC AVX Corp/Kyocera Corp CX3225SB, Kyocera 12MHz -40°C ~ 85°C
CX3225SB13560D0FPLCC AVX Corp/Kyocera Corp CX3225SB, Kyocera 13.56MHz -40°C ~ 85°C
CX3225SB24000D0FPLCC AVX Corp/Kyocera Corp CX3225SB, Kyocera 24MHz -40°C ~ 85°C
CX3225SB32000D0FPLCC AVX Corp/Kyocera Corp CX3225SB, Kyocera 32MHz -40°C ~ 85°C
CX2520DB12000C0WLSC1 AVX Corp/Kyocera Corp CX2520DB, Kyocera 12MHz -30°C ~ 85°C
ST3215SB32768B0HSZA1 AVX Corp/Kyocera Corp ST3215SB, Kyocera 32.768kHz -40°C ~ 125°C
ST3215SB32768E0HSZB1 AVX Corp/Kyocera Corp ST3215SB, Kyocera 32.768kHz -40°C ~ 125°C
ST3215SB32768B0HPWB3 AVX Corp/Kyocera Corp ST3215SB, Kyocera 32.768kHz -40°C ~ 85°C
CX3225CA16000H0HSSCC AVX Corp/Kyocera Corp CX3225CA, Kyocera 16MHz -40°C ~ 125°C
CX3225GA12000D0PTVCC AVX Corp/Kyocera Corp CX3225GA, Kyocera 12MHz -40°C ~ 150°C
CT2520DB26000C0FZZA1 AVX Corp/Kyocera Corp CT2520DB, Kyocera 26MHz -25°C ~ 85°C
ST2012SB32768Z0HPWB4 AVX Corp/Kyocera Corp ST2012SB, Kyocera 32.768kHz -40°C ~ 85°C
CX5032GB08000H0HEQZ1 AVX Corp/Kyocera Corp CX5032GB, Kyocera 8MHz -10°C ~ 70°C
CX1612DB48000D0FPJC1 AVX Corp/Kyocera Corp CX1612DB, Kyocera 48MHz -40°C ~ 85°C
